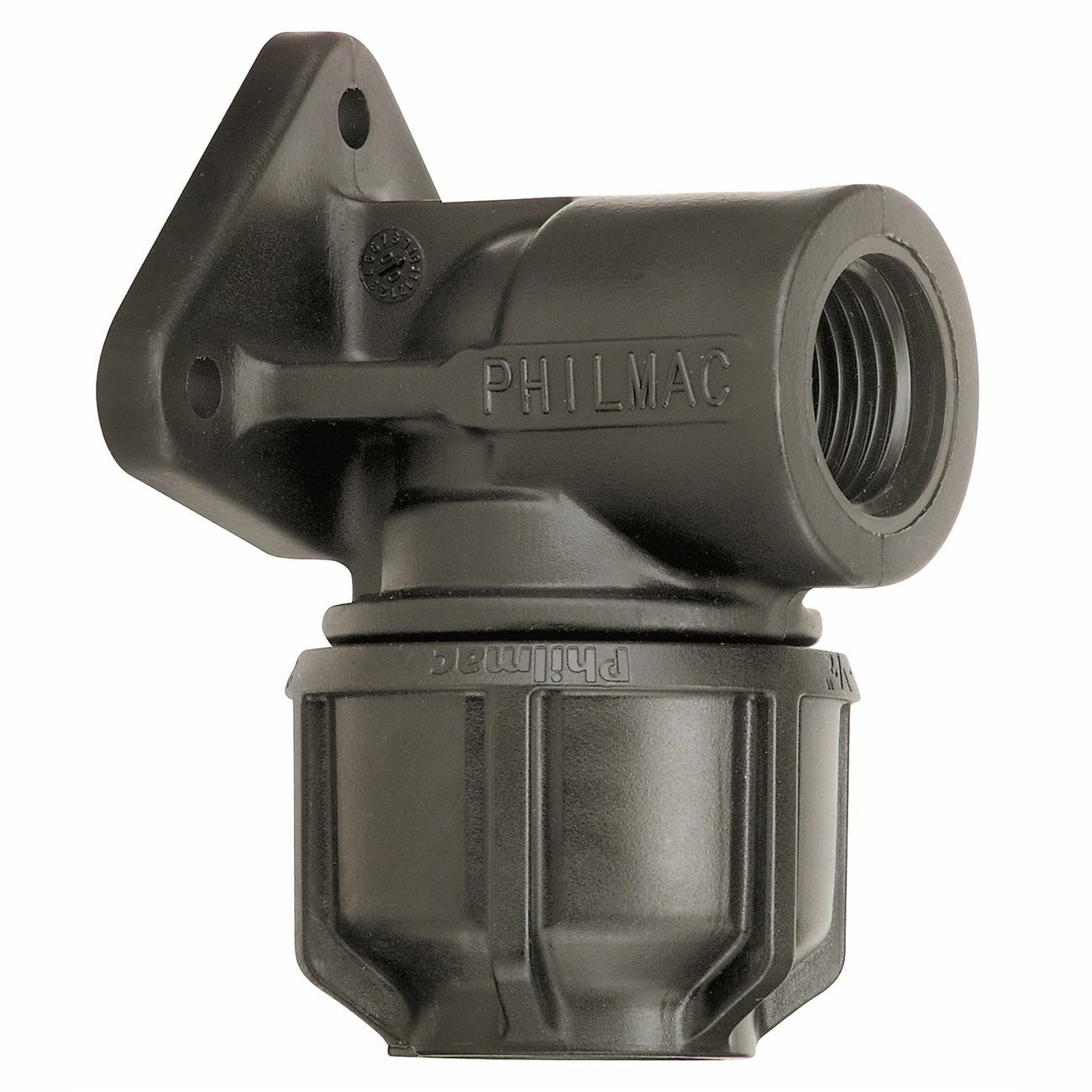

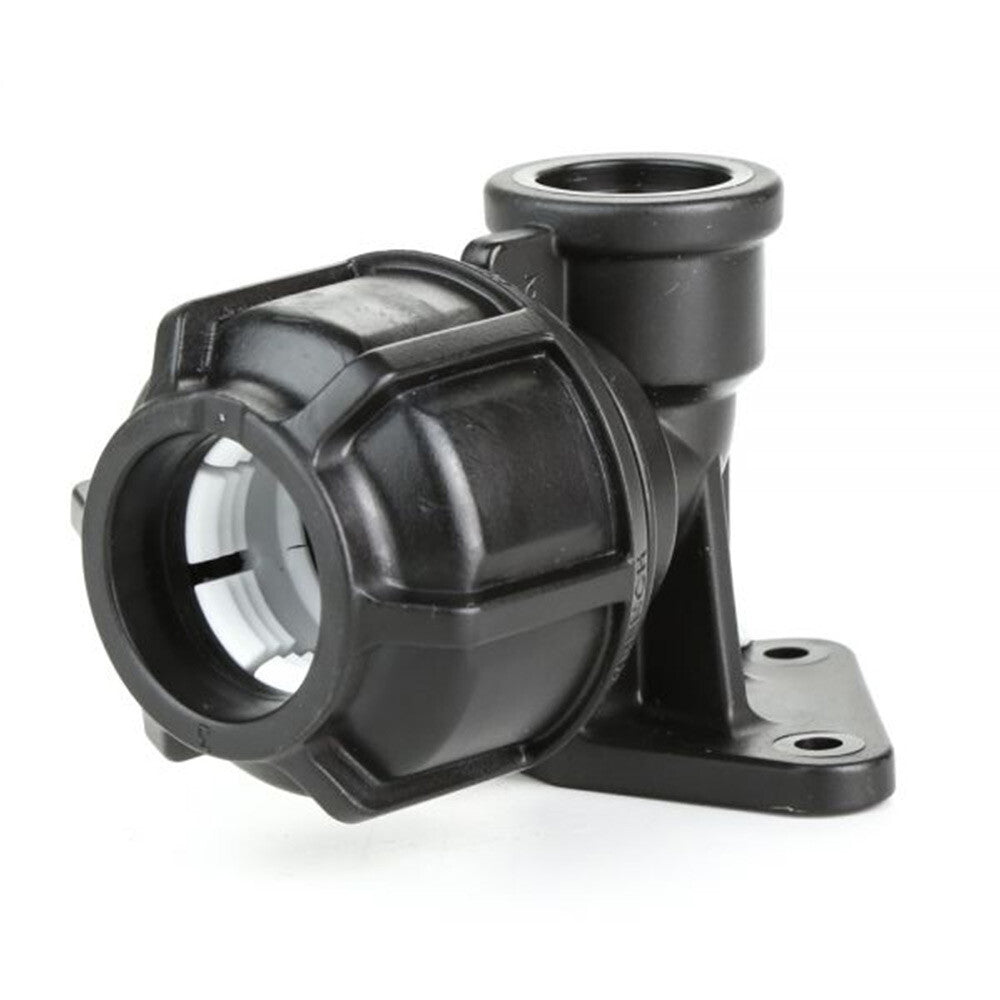

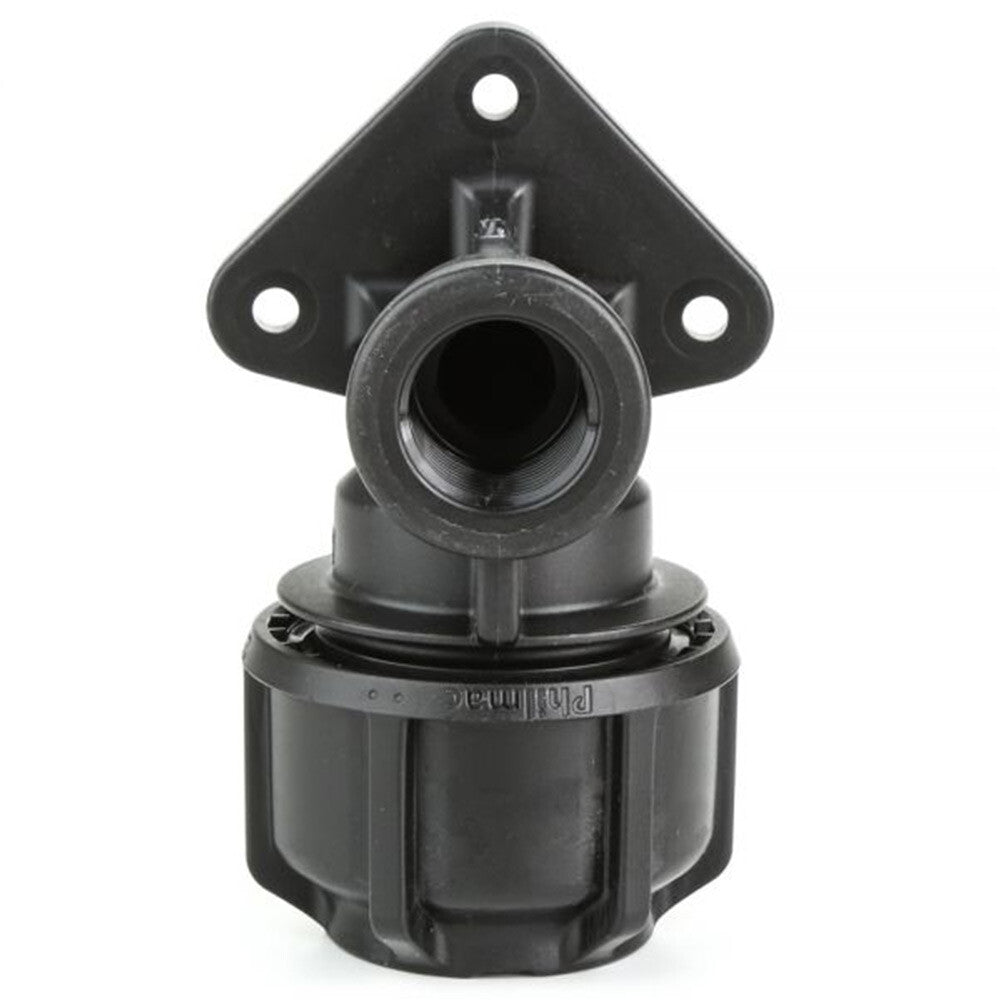

Philmac Metric Pipe Wall Plate Elbow 25mmx1/2" Poly x FI BSP

Philmac Metric Pipe Wall Plate Elbow 25mmx1/2" Poly x FI BSP

$24.83 AUD
$0.00 AUD $24.83 AUD
Sold out

In stock

The 3G Metric plastic compression fitting is the result of Philmac's unrelenting commitment to continuous improvement and a culture based on innovation and ingenuity. Australian designed and made, the Philmac Slide and Tighten technology will make the job at hand so much easier.


FEATURES:

  • Fast and easy installation
  • 3G incorporates all the benefits of Slide and Tighten technology with 100% positive feedback.
  • No loose components. Collet and seal remain captive in the body when the nut is removed
  • Rural, 2G Metric and 3G Metric connection components are all interchangeable

Specifications:
  • Colour: Black
  • Model Name: Philmac 25mm x 1/2" FI BSP Wall Plate Elbow
  • Model Number: 70723800
  • Material: Polypropylene Body, Acetal Nuts
  • Metric (Yes/No): Yes
  • Bend Degree: 90
  • Underground rated (Yes/No): Yes
  • Rating: PN16
  • Maximum working pressure (kpa): 1600
  • Fitting Size: 25
  • Compatible pipe material: metric polyethyelene pressure pipe

Product Dimensions:
Width: 90mm
Height: 70mm
Length: 50mm

Package Dimensions:
Width: 65mm
Height: 65mm
Length: 100mm


PACKAGE INCLUDE:

1X Philmac 25mm x 1/2" Poly x FI BSP Metric Pipe Wall Plate Elbow
